Condenser Tubesheet Coating: 13% Efficiency Gain, Project Payback in Under One Month
The coating installation produced a 13% efficiency gain. Project cost was recovered in under one month.
Main Condenser Tubesheet · Nuclear Power Plant, Ukraine
The Problem
Vacuum Loss from Tube-to-Tubesheet Joint Corrosion
Main condenser tubesheets were experiencing loss of vacuum due to leaking at the tube-to-tubesheet joints. The root cause was improper rolling of the tubes during original installation, which left the joint interface vulnerable to corrosive undercutting. Once corrosion establishes itself at that interface, it progressively widens the leak path — vacuum loss compounds, heat transfer degrades, and unit output drops.
Note
Tube-to-tubesheet joint leakage is one of the more insidious condenser failure modes because it doesn't announce itself dramatically. Output declines gradually, efficiency numbers drift, and the losses accumulate quietly until an outage forces the issue.
Specification
Two-Coat Epoxy System, Spray Applied
Application
Main Condenser Tubesheets
System
Two-Coat Epoxy Primer & Topcoat
Total DFT
40 mils
Surface Preparation

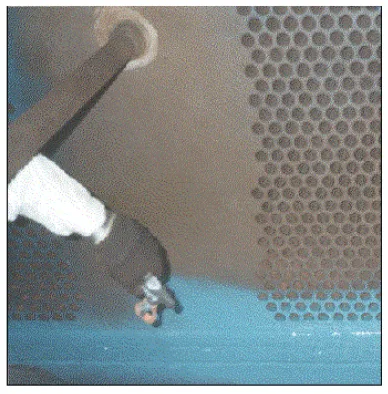

All joints, welds, and pitted areas were striped prior to full coat application.

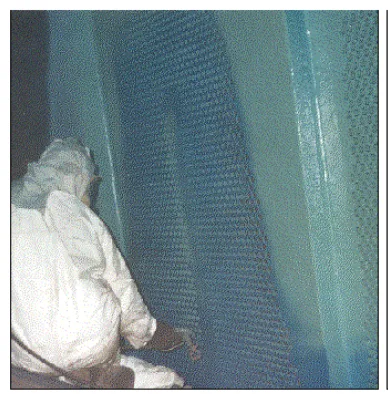

Primer
Selected to inhibit corrosive undercutting at the tube-to-tubesheet interface.

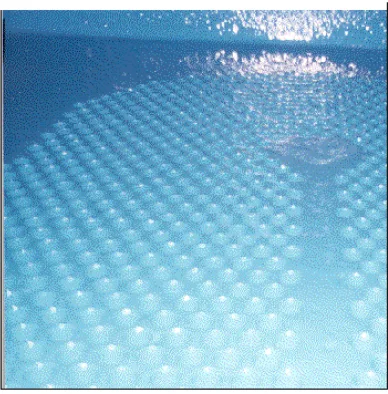

Topcoat
Seals the system and protects against further corrosion and erosion.
The Result
13% Efficiency Gain, Payback Under One Month
Efficiency Gain
13%
Project Payback
< 1 Month
The efficiency gain reflects the extent of vacuum loss that had accumulated at the tube-to-tubesheet interface prior to the repair. The sub-month payback period is a function of recovered output value relative to coating application cost.
Relevance to Fossil and Gas Applications
Not Unique to Nuclear
Condenser vacuum loss from tube-to-tubesheet joint corrosion is not unique to nuclear applications. The same failure mechanism — corrosive undercutting at the joint interface — occurs in coal, gas, and combined cycle condensers.
If your condenser is carrying documented tube leaks, or if heat rate has drifted without a clear mechanical cause, the tubesheet joint interface warrants investigation during your next planned outage.
Industries: Power Generation
